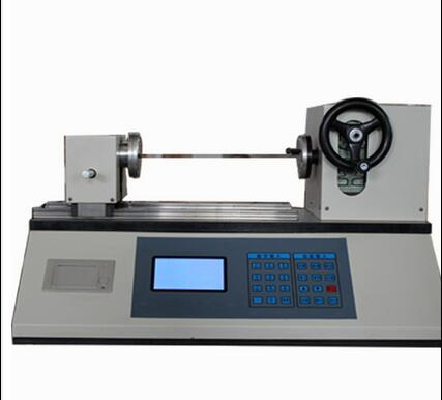

Name: manual material testing machine

Model: CLN-10/20/50/100/200N.m and other 5 models.

Product introduction

Manual material machine for testing torsion on all kinds of metal materials, non material torsion test, manual loading and high precision torque sensor for detecting torque, photoelectric encoder to measure the torsion angle and the LCD display test results. Widely used in welding point, spring steel, wire rope, steel wire, wire and cable, can detect the maximum torque, torsional strength, upper yield strength, lower yield strength and other performance parameters. Mainly used in wire rod production plant, the research department, the major technical secondary schools, industrial and mining enterprises, mechanical laboratory, etc. to determine the reverse of the material properties, etc..

Two, applicable standards:

Standard GB/T10128-1999 test method for torsion of metallic room temperature

New national standard GB/T10128-2007 "metal room temperature torsion test method"

Meet the national standard GB, also in line with ISO, JIS, ASTM, JIN and other international standards.

Three, function introduction

1 left - and right - free operation, torque and torsional angle at any point cleared.

2 display test date time, etc., the end of the test can be stored, query, print test results.

3 test process in real time to display the test angle and torque value, peak detection, automatic recording of the maximum torque before the test specimen.

Four, detailed technical parameters

Type manual

Model CLN-20 CLN-50 CLN-100 CLN-200 CLN-10

Measurement range 0.2-20N.m 0.5-50N.m 1-100N.m 2-200N.m 0.1-10N.m

Minimum torque reading 0.1N.m 0.01N.m

Twist indication error 1%

Minimum angle of twist angle 0.1

Maximum torsion angle 0 99999.9

The maximum size of the sample is 210 mm

Test machine level 1 / 0.5

Control mode LCD screen to set the test data to be manually loaded, the program automatically out of the test results can be printed

Overload protection program alarm

Test machine weight 85kg 55kg

Test machine power supply 220V AC 10% / 50Hz

Test machine size length width height 800 * 400 * 500 mm length width height 960 * 520 * 420 mm

Four, the main configuration of the testing machine

The main engine horizontal platform is designed to be more stable 1 Units

A surface treatment coating process, anti scratch, anti rust, grey computer 1 sets

LCD screen control system Chinese display, the program is simple to operate. 1

German Braun load sensor May Steiker or HBM efficient acquisition of torque sensor to ensure test accuracy of 1

The rotating disc heat treatment, 2 sets of blue

Standard fixture free for customers to design a set of 1 sets

1 sets of random technical data specification, packing list, verification report, certificate of conformity

Five, quality assurance

After formal acceptance of the equipment at your site is considered as a formal delivery. The three stage is the official equipment package delivery date of one year, in the three period of our package of equipment failure should be promptly free (except for quality accident) maintenance services; the various parts of damage to the human, timely free replacement. The warranty period of equipment failure in the use of the process, we should actively assist the timely service to the scene, you complete the maintenance service. We have been to provide users with the cost of accessories, we set up a user file for each user, the person responsible for contact with the user, we will always be a lifetime maintenance equipment for the user.
