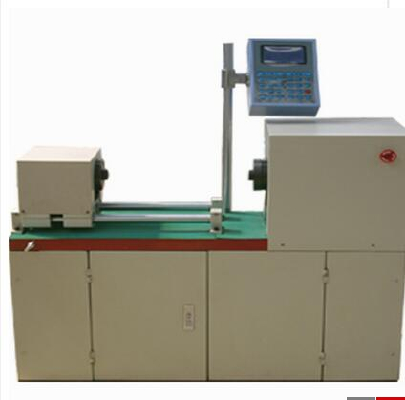

Name: automatic material testing machine

Model: CLN-Z100/200/1000/2000/5000N.m and other 5 models.

Product introduction

Automatic material machine for testing torsion on all kinds of metal materials, non material torsion test, automatic loading, brand, by motor reducer drive program control system, the development of the standard high precision torque sensor for detecting torque, microcomputer data acquisition card, photoelectric encoder to measure the torsion angle, LCD display test results. Widely used in welding point, spring steel, wire rope, steel wire, wire and cable, can detect the maximum torque, torsional strength, upper yield strength, lower yield strength and other performance parameters. Mainly used in wire rod production plant, the research department, the major technical secondary schools, industrial and mining enterprises, mechanical laboratory, etc. to determine the reverse of the material properties, etc..

Two, applicable standards:

Standard GB/T10128-1999 test method for torsion of metallic room temperature

New national standard GB/T10128-2007 "metal room temperature torsion test method"

Meet the national standard GB, also in line with ISO, JIS, ASTM, JIN and other international standards.

Three, function introduction

1 left - and right - free operation, torque and torsional angle at any point cleared.

2 display test date time, etc., the end of the test can be stored, query, print test results.

3 test process in real time to display the test angle and torque value, peak detection, automatic recording of the maximum torque before the test specimen.

4 the load of the motor is labor saving and time saving, and the twisting speed is adjustable, which has the characteristics of uniform and stable load, no impact phenomenon and accurate data acquisition control.

5 liquid crystal display, Chinese operation interface, multi button operation, according to the man-machine dialogue interface sequence operation complete parameter setting, automatic completion of the test and record the test data.

Four, detailed technical parameters

Machine type automatic type

Model CLN-Z200 CLN-Z1000 CLN-Z2000 CLN-Z5000 CLN-Z100

Maximum torque 200N.m 1000N.m 2000N.m 5000N.m 100N.m

Minimum torque reading 0.1N.m 0.01N.m

Measurement range 1%-100%

Twist indication error 1%

Minimum angle of twist angle 0.1

Maximum torsion angle 0 99999.9

The maximum distance of 510 mm chucks

Test speed 1-360 degrees adjustable /min

Test machine level 1 / 0.5

Overload protection computer program overload stop

Weight of testing machine 220kg

Test machine power supply 220V AC 10% / 50Hz

Test machine length width height 1300 * 510 * 820mm

Four, the main configuration of the testing machine

The main engine horizontal platform is designed to be more stable 1 Units

A surface treatment coating process, anti scratch, anti rust, grey computer 1 sets

Control system Chinese LCD screen control box 1 sets

German Braun - May Steiker sensor or HBM efficient acquisition torque sensor to ensure test accuracy of 1

The rotating disc heat treatment, 2 sets of blue

Standard fixture free for customers to design a set of 1 sets

1 sets of random technical data specification, packing list, verification report, certificate of conformity

Five, quality assurance

After formal acceptance of the equipment at your site is considered as a formal delivery. The three stage is the official equipment package delivery date of one year, in the three period of our package of equipment failure should be promptly free (except for quality accident) maintenance services; the various parts of damage to the human, timely free replacement. The warranty period of equipment failure in the use of the process, we should actively assist the timely service to the scene, you complete the maintenance service. We have been to provide users with the cost of accessories, we set up a user file for each user, the person responsible for contact with the user, we will always be a lifetime maintenance equipment for the user.
