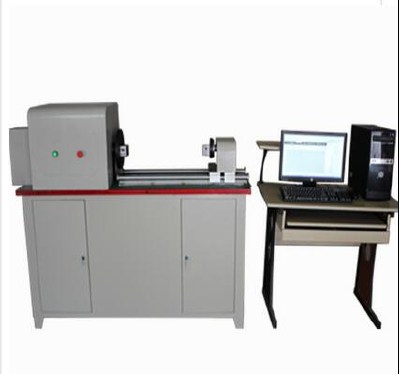

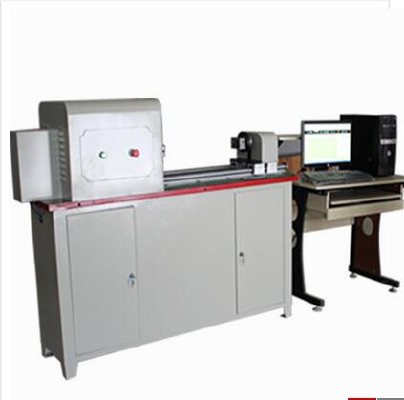

Name: microcomputer controlled material torsion testing machine

Model: CLN-W100/200/1000/2000/5000N.m and other 5 models.

Product introduction

Microcomputer control material machine for testing torsion on all kinds of metal materials, non material torsion test, computer software, loading motor reducer drive, according to the windows brand Chinese software system, the development of national high precision torque sensor for detecting torque and power data acquisition card, photoelectric encoder to measure the torsion angle, computer display, edit and print test results data report. Widely used in welding point, spring steel, wire rope, steel wire, wire and cable, can detect the maximum torque, torsional strength, upper yield strength, lower yield strength and other performance parameters. Mainly used in wire rod production plant, the research department, the major technical secondary schools, industrial and mining enterprises, mechanical laboratory, etc. to determine the reverse of the material properties, etc..

Some users are using the product: Shanghai Ming Qing Plastic Co., Ltd.

Two, applicable standards:

Standard GB/T10128-1999 test method for torsion of metallic room temperature

New national standard GB/T10128-2007 "metal room temperature torsion test method"

Meet the national standard GB, also in line with ISO, JIS, ASTM, JIN and other international standards.

Three, function introduction

1Windows Chinese test software, to achieve the test data acquisition and processing.

2 real-time display of torque, torque, torque angle, torque, torque, torque, torque, torque, time, torque, time and other four kinds of curves, etc.

3 curve analysis: can be on any point on the curve to enlarge the access, and display the selected nodes of the test data.

4 left - and right - free operation, torque and torsional angle at any point cleared.

5 test set, test conditions, test data can be automatically saved, when needed.

6 batch experiment with the same batch of samples can be carried out, and can be stored in the settings, the next use of the transfer can be used to improve efficiency.

7 test results can be edited print output text files, etc.

Four, detailed technical parameters

Machine type automatic type

Model CLN-W200 CLN-W1000 CLN-W2000 CLN-W5000 CLN-W100

Maximum torque 200N.m 1000N.m 2000N.m 5000N.m 100N.m

Minimum torque reading 0.1N.m 0.01N.m

Measurement range 1%-100%

Twist indication error 1%

Minimum angle of twist angle 0.1

Maximum torsion angle 0 99999.9

The maximum distance of 510 mm chucks

Test speed 1-360 degrees /min adjustable

Test machine level 1 / 0.5

Control mode Windows Chinese Windows operating software

Overload protection computer program overload stop

Weight of testing machine 220kg

Test machine power supply 220V AC 10% / 50Hz

Test machine length width height 1300 * 510 * 880mm

Four, the main configuration of the testing machine

The main engine horizontal platform is designed to be more stable 1 Units

A surface treatment coating process, anti scratch, anti rust, grey computer 1 sets

Control system Windows Chinese Windows operating system man-machine interface 1 sets

1 sets of high precision acquisition card for the original software of the measurement and control system

German Braun - May Steiker sensor or HBM efficient acquisition torque sensor to ensure test accuracy of 1

The rotating disc heat treatment, 2 sets of blue

Standard fixture free for customers to design a set of 1 sets

1 sets of random technical data specification, packing list, verification report, certificate of conformity

Five, quality assurance

After formal acceptance of the equipment at your site is considered as a formal delivery. The three stage is the official equipment package delivery date of one year, in the three period of our package of equipment failure should be promptly free (except for quality accident) maintenance services; the various parts of damage to the human, timely free replacement. The warranty period of equipment failure in the use of the process, we should actively assist the timely service to the scene, you complete the maintenance service. We have been to provide users with the cost of accessories, we set up a user file for each user, the person responsible for contact with the user, we will always be a lifetime maintenance equipment for the user.
